A Handy Terminal
That Enhances Work Efficiency

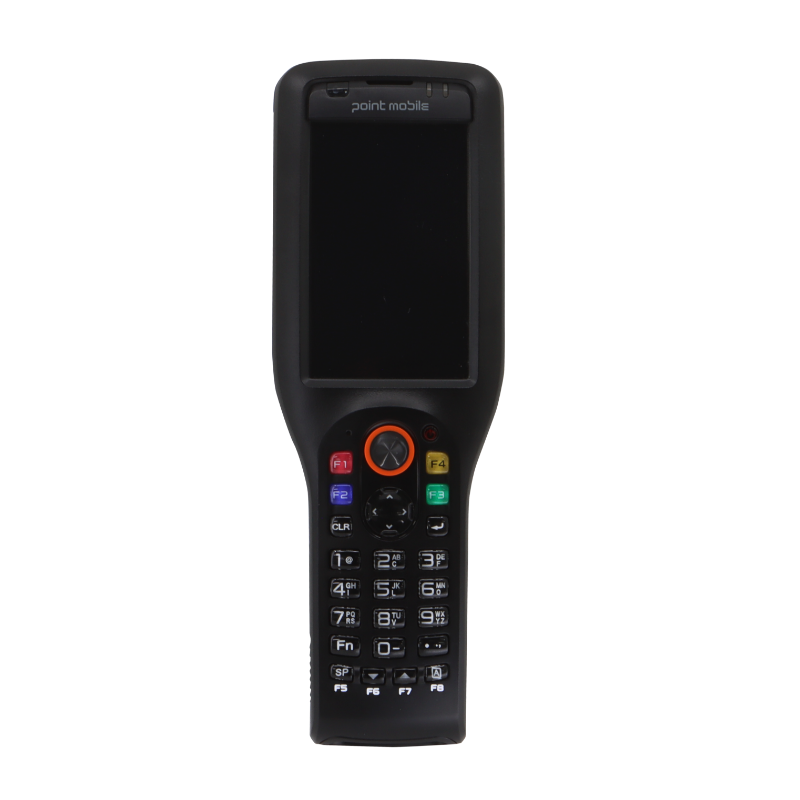

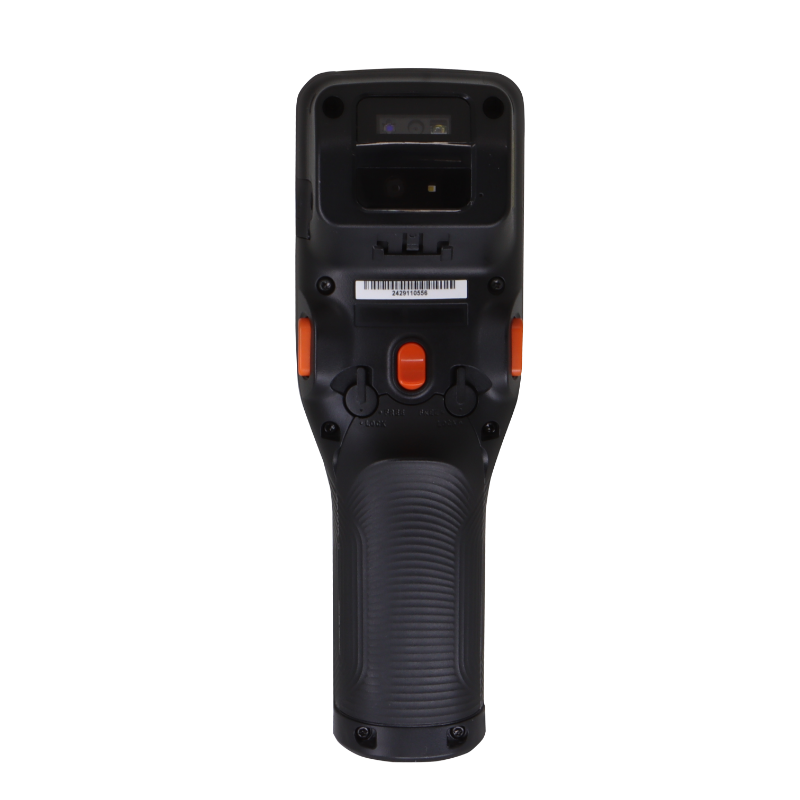

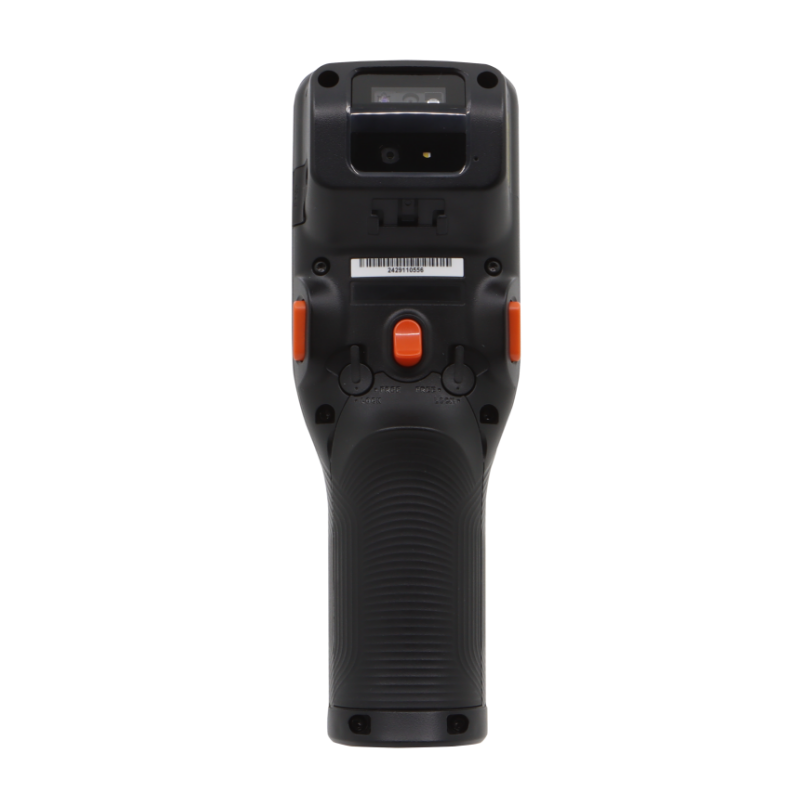

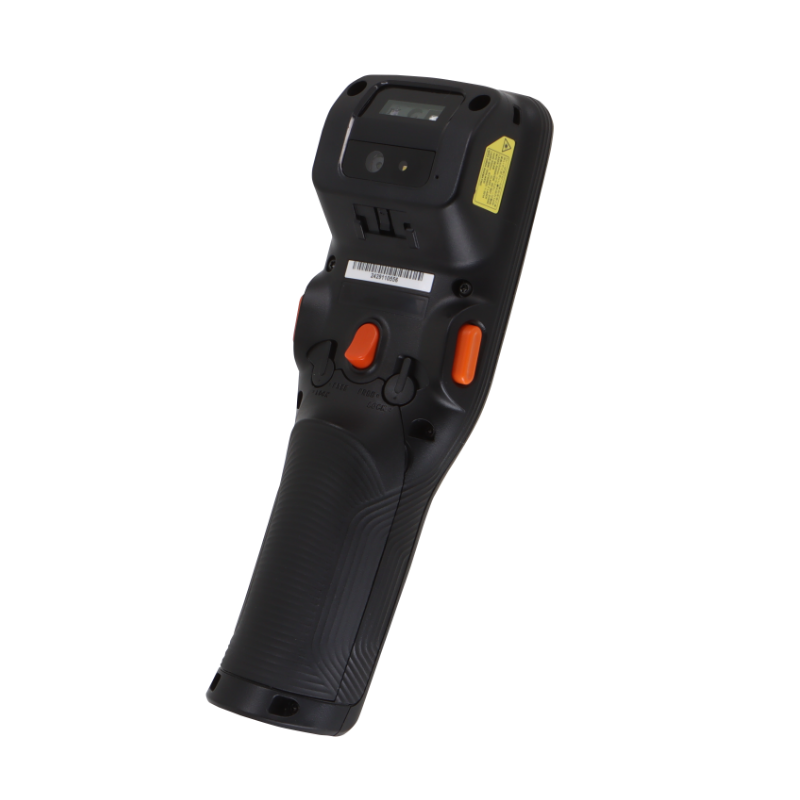

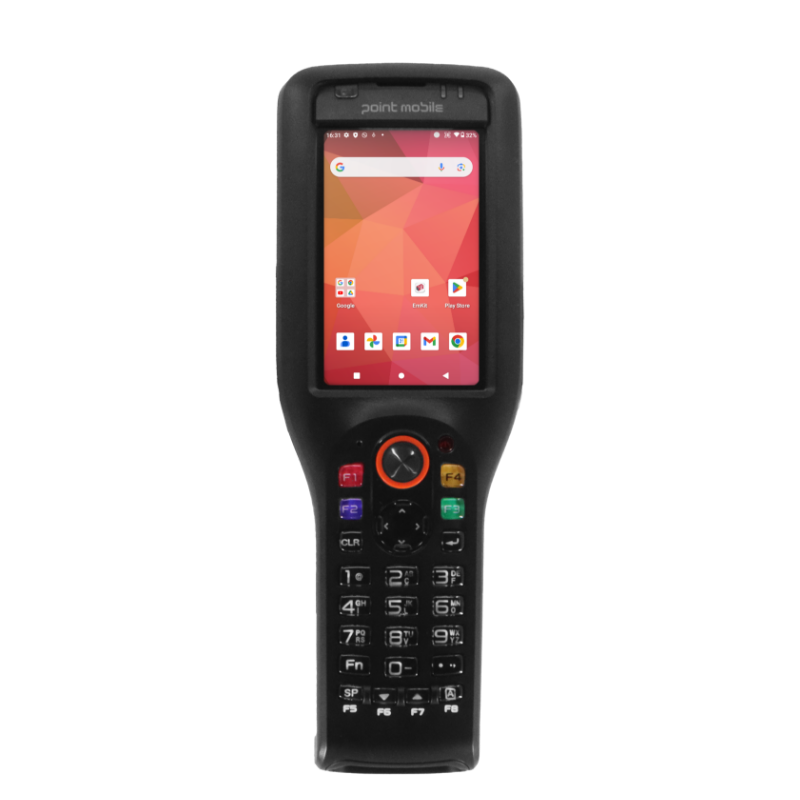

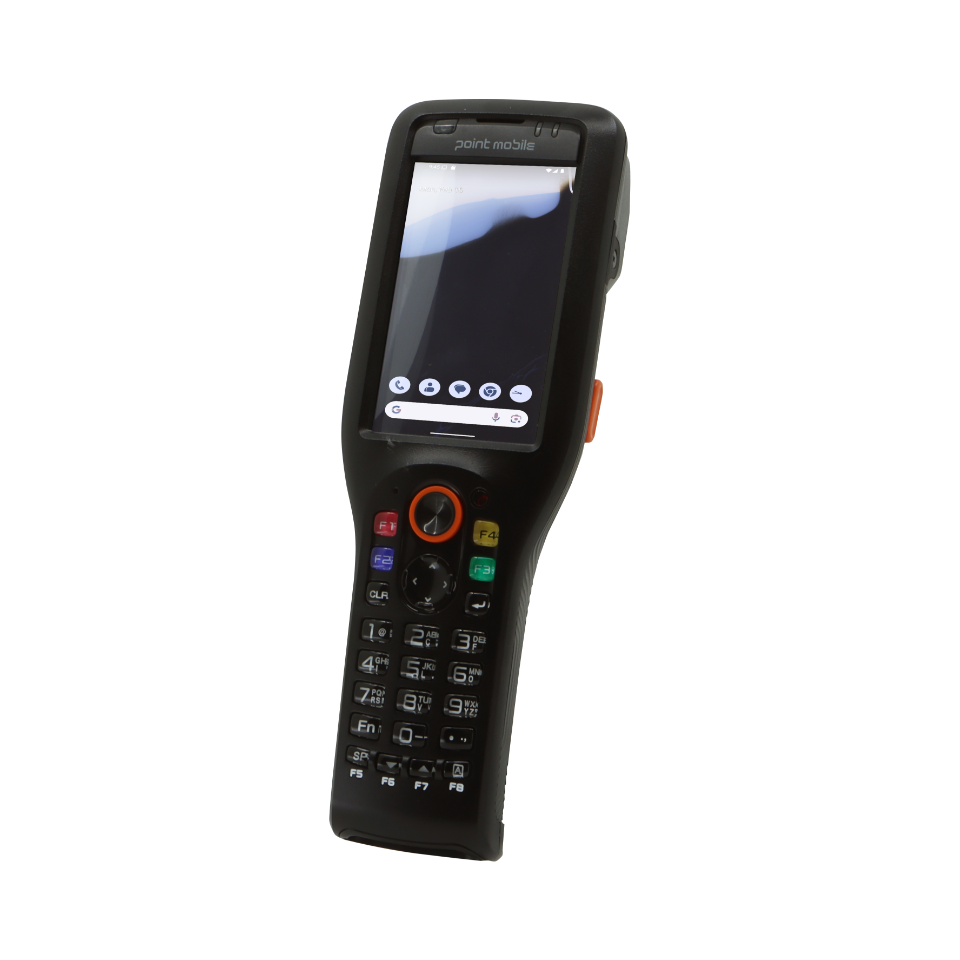

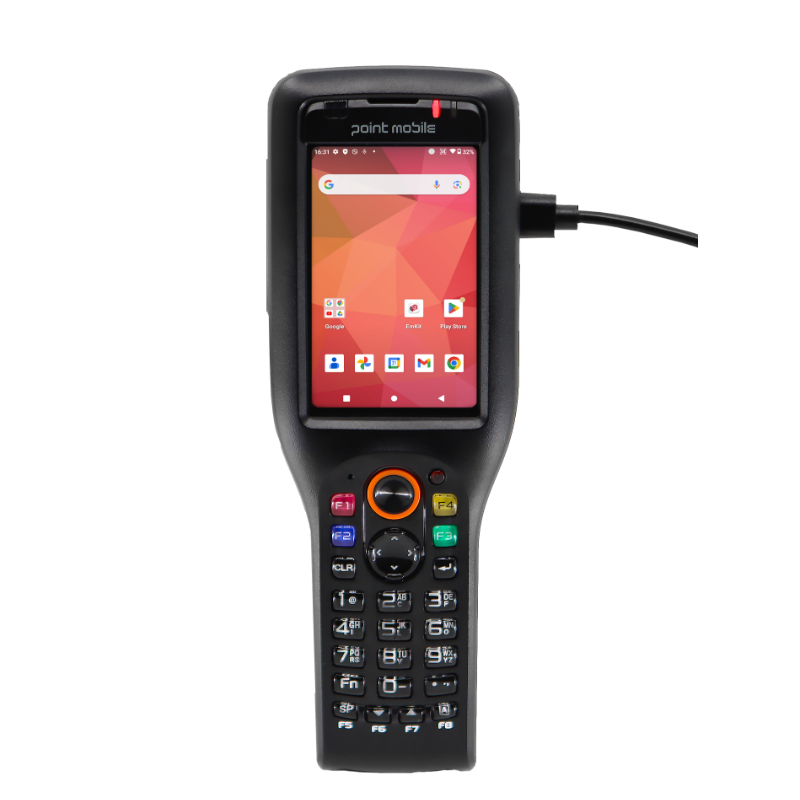

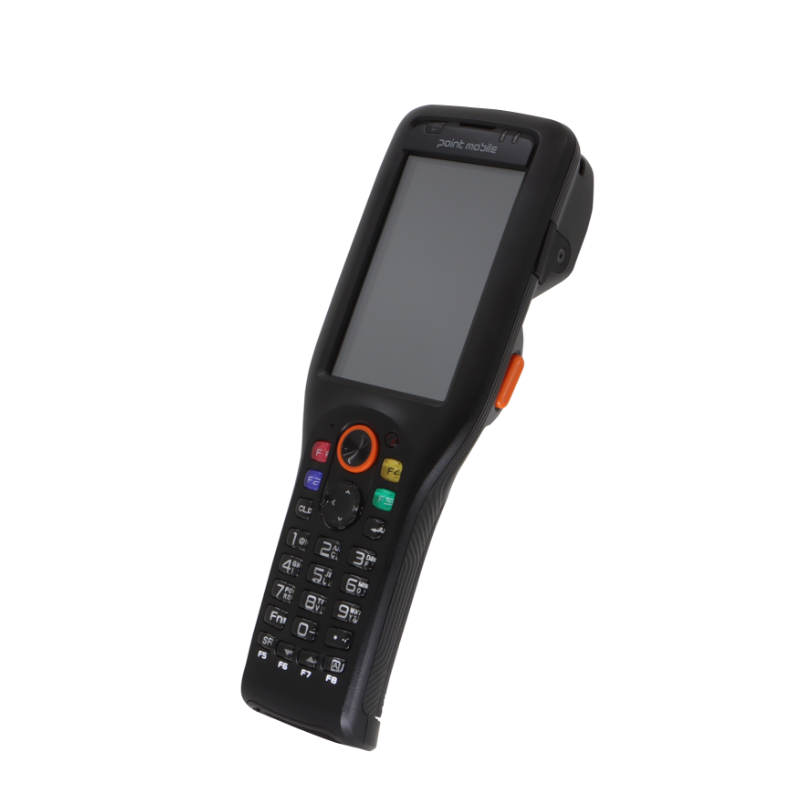

MX450

The MX450 is a compact, rugged handheld terminal featuring a high-speed processor,
advanced scanning capabilities, and outstanding durability for demanding work environments.

MX450
MX450
MX450
MX450
MX450
MX450
MX450
MX450
1
/
1
MX450

  • Android 13

  • 3.0 m (9.8 ft.) drop

  • IP67

  • LTE & Wi-Fi

  • 13 MP Camera

  • 25 ° or 60 ° scan angle

Ergonomic and
Efficient Design

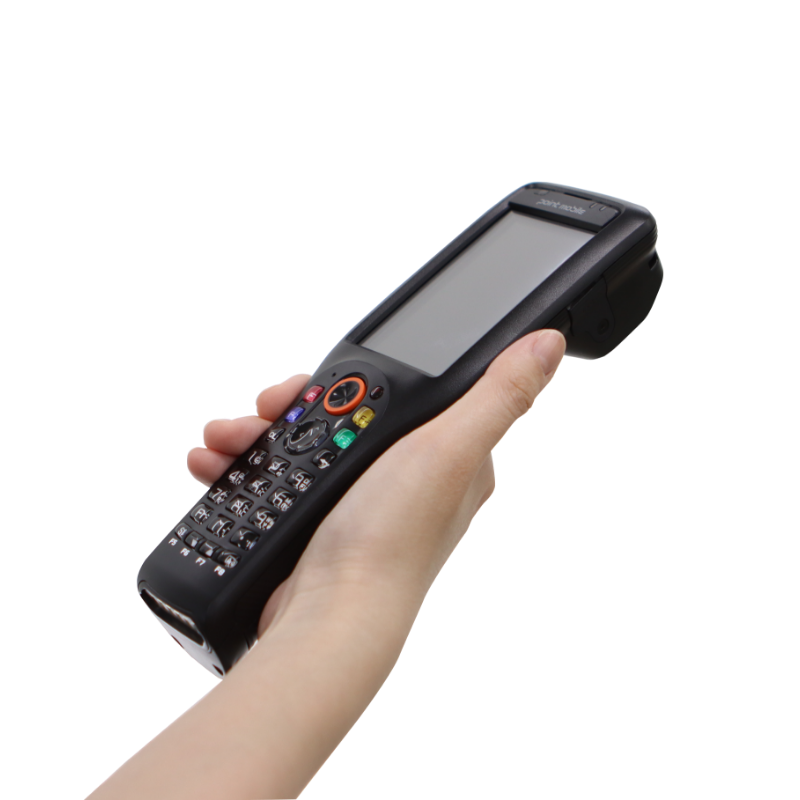

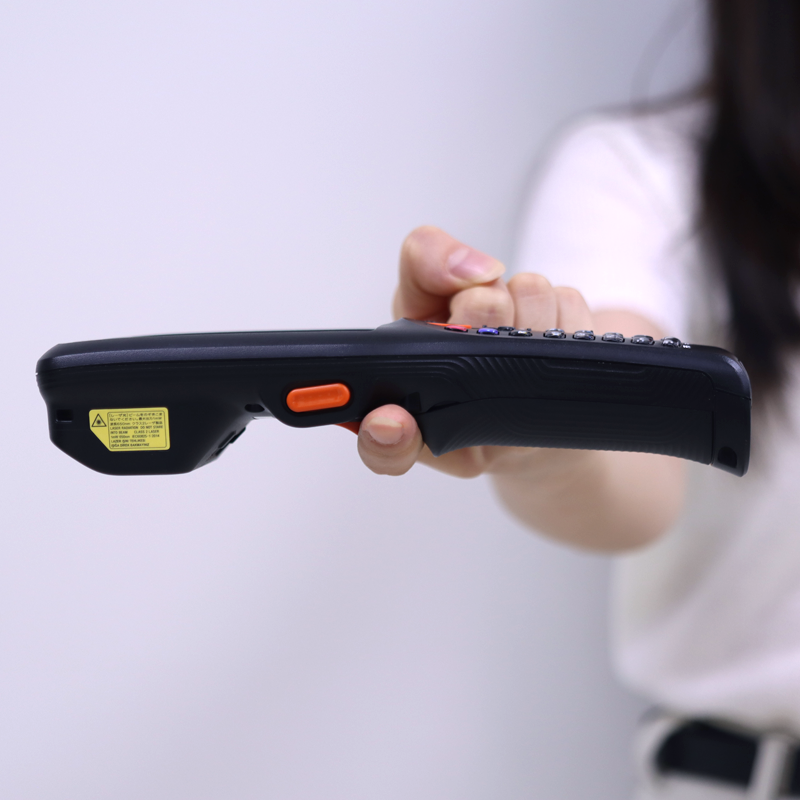

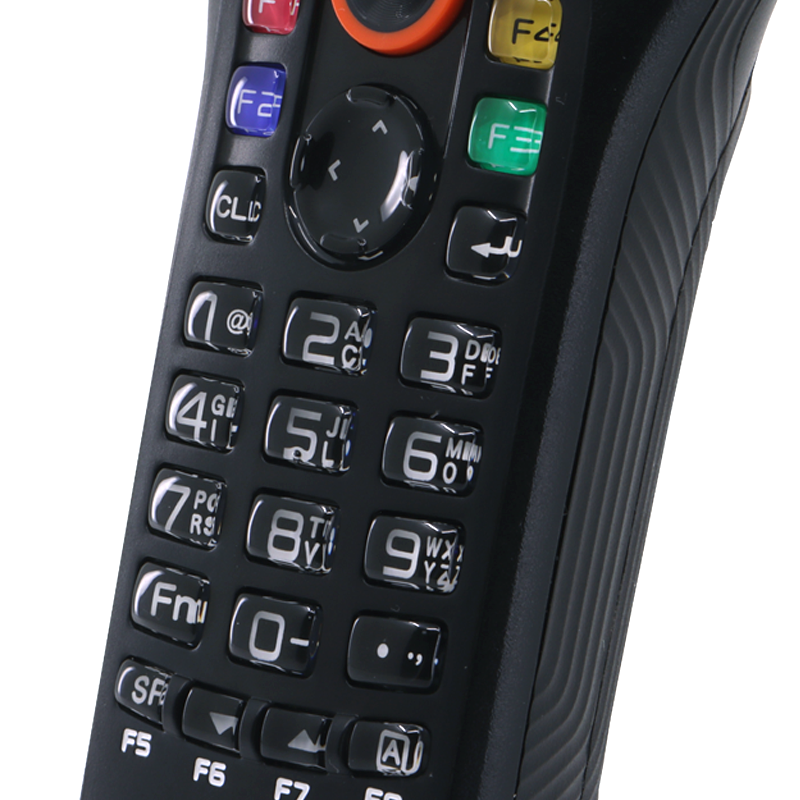

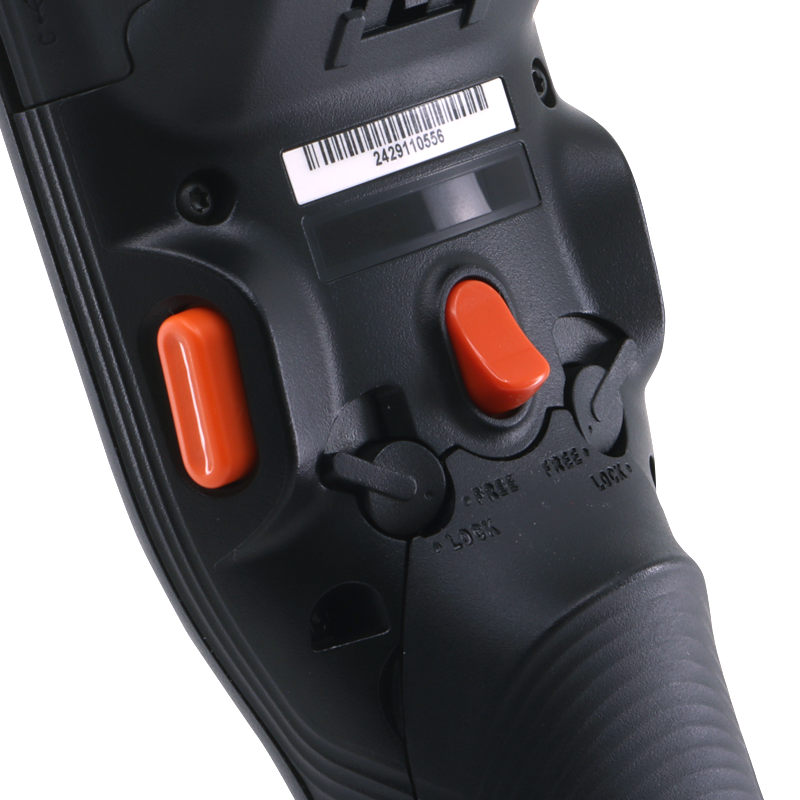

The MX450 features a compact, well-balanced grip with a non-slip back for secure, fatigue-free handling. Its 3.2" glove-compatible touchscreen and dome-shaped keys enable smooth, accurate input. Three trigger positions support various scanning styles, including a rear trigger for natural one-handed operation. Available in 25° and 60° scan angles to suit different work environments.

MX450
  • Uncompromised
    durability
  • Rain/dust proof

    MX450 boasts an IP67-rated dustproof
    and waterproof design, and can operate in temperature
    environments from -20 °C to 50 °C.

  • Drop

    The MX450 features a reinforced plastic touch panel
    and a shock-resistant frame structure,
    achieving a drop resistance of 3 m

  • Tumble

    The MX450 has excellent tumble durability,
    having passed a 50 cm / 5,000-cycle tumble test.
    This means it can endure repeated drops and impacts from everyday
    handling ideal for tough work environments.

Powerful scanning
performance

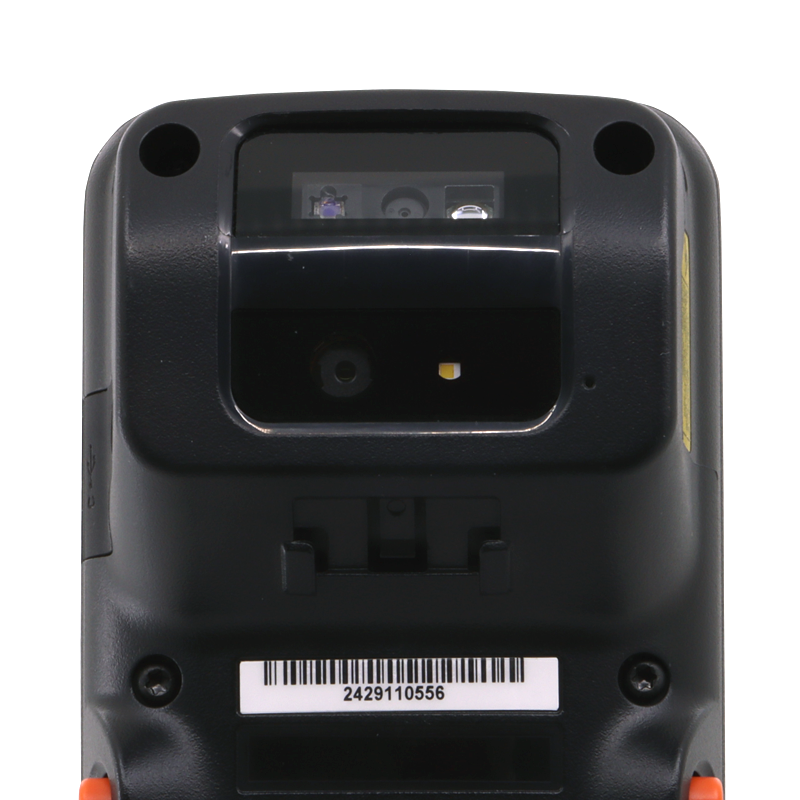

The MX450 is equipped with a next-generation 2D barcode-capable CMOS imager that offers high-speed reading and excellent readability of hard-to-read codes. The imager adopts a global shutter, enabling accurate scanning even in low-light conditions or with hand movement.

MX450
Power Design for
Long Operating Hours

To keep your daily operations running smoothly, a long-lasting battery is essential. Despite its compact 2,900mAh battery, the MX450 is designed with a power-efficient architecture that supports extended use. This means you don’t need to swap batteries during operation, allowing for uninterrupted work and improved efficiency.

MX450
  • Rain/dust proof
    Rain/dust proof
    IP67

    Fully dustproof and tested against 1 m
    water immersion test for 30 minutes

  • Drop
    Drop
    3.0 m

    Multiple drop resistance test

  • Tumble
    Tumble
    5,000 cycles

    5,000 cycles (10,000 hits) at 0.5 m
    (1.6 ft.) tumble test

Specifications
Dimensions(L x W x D) 66 x 196 x 38 mm
Weight 260 g (with the battery)
Power 2,900 mAh, Li-ion rechargeable
Display 3.2-inch transmissive color TFT LCD, 800 x 480 pixels
OS Android 13
Processor Octa-core @2.0 GHz
Memory and storage 4 GB / 64 GB
Communication WWAN: LTE
WLAN: IEEE802.11.a/b/g/n/ac, support CCX (no certification), support Fast Roaming, WPA3 Enterprise 192-bit
WPAN: Bluetooth v 5.1 + EDR/LE
Data capture 2D scan engine with 25° or 60° scan angle
13 MP rear camera with flash (on top)
NFC supports Type A/B/F tags
Drop 3.0 m (9.8 ft.) drop resistance
Rain/dust Proof IP67
